TDA8922

Features: · High efficiency (~90%)· Operating supply voltage from ±12.5 to ±30 V· Very low quiescent current· Low distortion· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL)· Fixed gain of 30 dB in Single-Ended (SE) and 36 dB in Bridge-Tied Load (BTL...

product image

TDA8922 Picture
See larger image
SeekIC No. : 004516866 Detail

TDA8922: Features: · High efficiency (~90%)· Operating supply voltage from ±12.5 to ±30 V· Very low quiescent current· Low distortion· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in...

TDA8922 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8922
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High efficiency (~90%)
· Operating supply voltage from ±12.5 to ±30 V
· Very low quiescent current
· Low distortion
· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL)
· Fixed gain of 30 dB in Single-Ended (SE) and 36 dB in Bridge-Tied Load (BTL)
· High output power
· Good ripple rejection
· Internal switching frequency can be overruled by an external clock
· No switch-on or switch-off plop noise
· Short-circuit proof across load and to supply lines
· Electrostatic discharge protection
· Thermally protected.


Application

· Television sets
· Home-sound sets
· Multimedia systems
· All mains fed audio systems
· Car audio (boosters).


Pinout

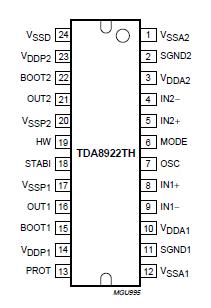

Connection Diagram


Specifications

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
Unit
VP supply voltage
-
±30
V
VMODE input voltage on pin MODE
with respect to SGND
-
5.5
V
Vsc short-circuit voltage on output pins
-
±30
V
IORM repetitive peak current in output pin
note 1
-
4
A
Tstg storage temperature
-55
+150
Tamb ambient temperature
-40
85
Tvj virtual junction temperature
-
150

Notes
1. See Section 16.6.


Description

The TDA8922 is a high efficiency class-D audio power amplifier with very low dissipation. The typical output power is 2 ×25 W.

The TDA8922 is available in the HSOP24 power package with a small internal heatsink and in the DBS23P through-hole power package. Depending on the supply voltage and load conditions, a very small or even no external heatsink is required. The amplifier operates over a wide supply voltage range from ±12.5 to ±30 V and consumes a very low quiescent current.
