TDA8822

Features: · 5 V power supply· Video amplifier with clamp and white clip circuits· Programmable video modulation depth· FM sound modulator (4.5, 5.5, 6.0 and 6.5 MHz)· Programmable picture-to-sound ratio· Programmable deviation of the sound subcarrier· Input for modulated NICAM sound subcarrier or ...

product image

TDA8822 Picture
See larger image
SeekIC No. : 004516860 Detail

TDA8822: Features: · 5 V power supply· Video amplifier with clamp and white clip circuits· Programmable video modulation depth· FM sound modulator (4.5, 5.5, 6.0 and 6.5 MHz)· Programmable picture-to-sound r...

TDA8822 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8822
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 5 V power supply
· Video amplifier with clamp and white clip circuits
· Programmable video modulation depth
· FM sound modulator (4.5, 5.5, 6.0 and 6.5 MHz)
· Programmable picture-to-sound ratio
· Programmable deviation of the sound subcarrier
· Input for modulated NICAM sound subcarrier or second frequency modulated sound subcarrier
· Asymmetrical or symmetrical RF output buffer
· Symmetrical RF oscillator for UHF or VHF band according to the application
· One I2C-bus programmable output port
· On-chip Phase-Locked Loop (PLL) frequency synthesizer for the RF carrier
· On-chip PLL frequency synthesizer for the sound carrier
· On-chip power supply regulator
· On-chip I2C-bus and/or hardware controlled Test Pattern Signal Generator (TPSG) with LED driver
· RF output switch-off during tuning.


Application

· Video recorders
· Cable converters
· Satellite receivers
· Set top boxes.


Pinout

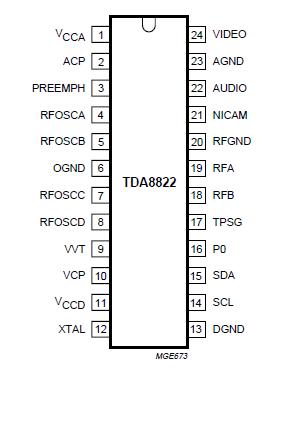

Connection Diagram


Description

The TDA8822 is a programmable modulator which generates an RF TV channel from a baseband video signal and a baseband audio signal in the event of negative video and FM sound standards (B/G, I, D/K, M and N standards).

Two PLL frequency-synthesizers set the picture carrier frequency and the sound subcarrier frequency to the required frequencies. These PLL frequency-synthesizers are programmed via the I2C-bus.

The I2C-bus controls these features:
· Video modulation depth
· Sound subcarrier modulation deviation
· Picture-to-sound ratio.

This makes the TDA8822 suitable for multistandard applications without any adjustment into the application.

Additional features of TDA8822 are provided like an input for the NICAM or second FM carrier, a test pattern signal generator with a LED driver and a general purpose output port.
