Product Details

Description

Features:

· Tracking error processor with automatic asymmetry control
· AGC circuity with automatic start-up and wobble generator
· Tracking control for fast forward/reverse scan, search, repeat and pause functions
· Radial polarity - 4 - tracks counting
· Possibility for car, home and portable applications.

Pinout

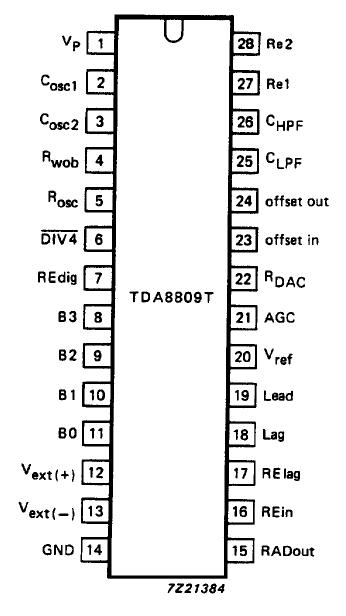

Connection Diagram

Description

The TDA8809T is a bipolar integrated circuit which provides control signals for the radial motor. These control signals are generated from radial error signals received from a photo-diode signal processor (TDA8808), and velocity control signals from the control processor.
