TDA8793

Features: · 8-bit low-power ADC: 180 mW (typical value)· 2.7 to 3.6 V operation· Track-and-hold circuit· In track-and-hold mode: sampling rate from 70 to 100 Msps· In non track-and-hold mode: sampling rate from 1 sps to 100 Msps· CMOS/TTL compatible digital inputs and outputs· Internal reference v...

product image

TDA8793 Picture
See larger image
SeekIC No. : 004516857 Detail

TDA8793: Features: · 8-bit low-power ADC: 180 mW (typical value)· 2.7 to 3.6 V operation· Track-and-hold circuit· In track-and-hold mode: sampling rate from 70 to 100 Msps· In non track-and-hold mode: sampli...

TDA8793 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8793
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 8-bit low-power ADC: 180 mW (typical value)
· 2.7 to 3.6 V operation
· Track-and-hold circuit
· In track-and-hold mode: sampling rate from 70 to 100 Msps
· In non track-and-hold mode: sampling rate from 1 sps to 100 Msps
· CMOS/TTL compatible digital inputs and outputs
· Internal reference voltages
· Adjustable full-scale range possibility with external reference
· Power-down mode: 5 mW.


Application

· Radio communications
· Digital data storage read channels
· Medical imaging
· Digital instrumentation.


Pinout

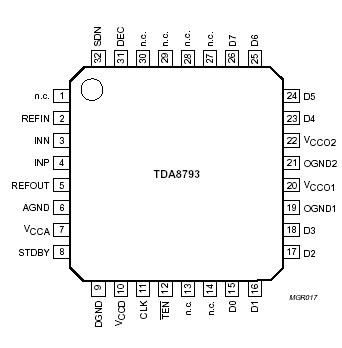

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCCA analog supply voltage note 1 -0.3 +5.0 V
VCCD digital supply voltage note 1 -0.3 +5.0 V
VCCO output stages supply voltage note 1 -0.3 +5.0 V
VCC supply voltage differences between
VCCA and VCCD
VCCO and VCCD
VCCA and VCCO		   -1.0
-1.0
-1.0		 +1.0
+1.0
+1.0		 V
V
V
Vn voltage on pins
INP, INN, CLK, TEN and STDBY
REFIN		 note 2 -0.3
-0.3		 +4.5
+4.5		 V
V
IO output current     10 mA
Tstg storage temperature   -55 +150
Tamb ambient temperature   0 70

1. The supply voltages VCCA, VCCD, VCCO may have any value between -0.3 and +5.0 V provided that the supply
voltage differences VCC are respected.
2. All voltages are typical values and are referenced to all ground pins connected together.


Description

The TDA8793 is an 8-bit low-power Analog-to-Digital Converter (ADC) which includes a track-and-hold circuit and internal references. The device converts an analog input signal, up to 100 MHz, into 8-bit binary codes at a maximum sample rate of 100 Msps. All digital inputs and outputs are CMOS/TTL compatible. A sine wave clock input signal can also be used.

The Power-down mode enables the device power consumption to be reduced to 5 mW.
