TDA8792

Features: · 8-bit resolution· Sampling rate up to 25 MHz· 30 MHz input signal bandwidth (full scale)· High signal-to-noise ratio over a large analog input frequency range (7.3 effective bits at 4.43 MHz full-scale input at fclk = 25 MHz)· CMOS compatible digital inputs· External reference voltage ...

product image

TDA8792 Picture
See larger image
SeekIC No. : 004516856 Detail

TDA8792: Features: · 8-bit resolution· Sampling rate up to 25 MHz· 30 MHz input signal bandwidth (full scale)· High signal-to-noise ratio over a large analog input frequency range (7.3 effective bits at 4.43...

TDA8792 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8792
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 8-bit resolution
· Sampling rate up to 25 MHz
· 30 MHz input signal bandwidth (full scale)
· High signal-to-noise ratio over a large analog input frequency range (7.3 effective bits at 4.43 MHz full-scale input at fclk = 25 MHz)
· CMOS compatible digital inputs
· External reference voltage regulator
· Power dissipation only 53 mW (typical)
· Standby mode (only 1.2 mW typical)
· Low analog input capacitance, no buffer amplifier required
· No sample-and-hold circuit required.




Application

Analog-to-digital conversion for:
· General purpose
· Hand-held equipment
· Mobile telecommunication
· Instrumentation
· Video.


Pinout

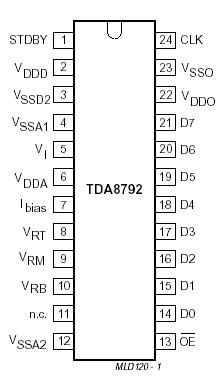

Connection Diagram


Specifications

SYMBOL PARAMETER PARAMETER MIN. MAX. UNIT
VDDA analog supply voltage note 1 -0.5 +5.0 V
VDDD digital supply voltage note 1 -0.5 +5.0 V
VDDO output stages supply voltage note 1 -0.5 +5.0 V
VDD1 supply voltage differences between
VDD1 = VDDA - VDDD		   -0.5 +5.0 V
VDD2 supply voltage differences between
VDD2 = VDDD - VDDO		   -1.0 +1.0 V
VDD3 supply voltage differences between
VDD3 = VDDA - VDDO		   -1.0 +1.0 V
VI input voltage referenced to VSSA -0.5 +5.0 V
Vclk(p-p) AC input voltage for switching
(peak-to-peak value)		 referenced to VSSD   VDDD V
IO output current     10 mA
Tstg storage temperature   -50 +150
Tamb operating ambient temperature   -20 +75
Tj junction temperature     +125

1. The supply voltages VDDA, VDDD and VDDO may have any value between -0.5 V and +5.0 V provided that the
differences VDD1, VDD2 and VDD3 are respected.


Description

The TDA8792 is a 8-bit analog-to-digital converter (ADC) for low-voltage, portable applications. It operates at 3.3 V and converts the analog input signal into 8-bit binary-coded digital words at a maximum sampling rate of 25 MHz. The output data is valid after a delay of 6 clock cycles.
