Features:

· Correlated Double Sampling (CDS), AGC, 10-bit ADC and reference regulator included, adjustable bandwidth (CDS and AGC)
· Fully programmable via a 3-wire serial interface
· Sampling frequency up to 18 MHz
· AGC gain from 4.5 to 34.5 dB (in 0.1 dB steps)
· CDS programmable bandwidth from 4 to 120 MHz
· AGC programmable bandwidth from 4 to 54 MHz
· Standby mode available for each block for power saving applications (20 mW typical)
· 6 dB fixed gain analog output for analog iris control
· 8-bit and 10-bit DAC included for analog settings
· Low power consumption of only 483 mW typical
· 5 V operation and 2.5 to 5.25 V operation for the digital outputs
· TTL compatible inputs, TTL and CMOS compatible outputs.


Application

· CCD camera systems.


Pinout

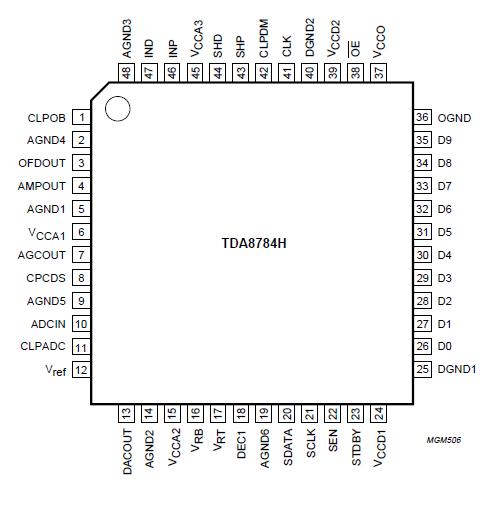

Connection Diagram


Description

The TDA8784 is a 10-bit analog-to-digital interface for CCD cameras. The device includes a correlated double sampling circuit, AGC and a low-power 10-bit Analog-to-Digital Converter (ADC) together with its reference voltage regulator.

The AGC and CDS have a bandwidth circuit controlled by on-chip DACs via a serial interface.

A 10-bit DAC controls the ADC input clamp level. An additional 8-bit DAC of the TDA8784 is provided for additional system controls; its output voltage range is 1.4 V (p-p) which is available at pin OFDOUT.
