TDA8783

Features: · Correlated Double Sampling (CDS), AGC, 10-bit ADC and reference regulator included, adjustable bandwidth (CDS and AGC)· Fully programmable via a 3-wire serial interface· Sampling frequency up to 40 MHz· AGC gain from 4.5 to 34.5 dB (in 0.1 dB steps)· CDS programmable bandwidth from 4 t...

product image

TDA8783 Picture
See larger image
SeekIC No. : 004516850 Detail

TDA8783: Features: · Correlated Double Sampling (CDS), AGC, 10-bit ADC and reference regulator included, adjustable bandwidth (CDS and AGC)· Fully programmable via a 3-wire serial interface· Sampling frequen...

TDA8783 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8783
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Correlated Double Sampling (CDS), AGC, 10-bit ADC and reference regulator included, adjustable bandwidth (CDS and AGC)
· Fully programmable via a 3-wire serial interface
· Sampling frequency up to 40 MHz
· AGC gain from 4.5 to 34.5 dB (in 0.1 dB steps)
· CDS programmable bandwidth from 4 to 120 MHz
· AGC programmable bandwidth from 4 to 54 MHz
· Standby mode available for each block for power saving applications 20 mW (typ.)
· 6 dB fixed gain analog output for analog iris control
· 8-bit and 10-bit DAC included for analog settings
· Low power consumption of only 483 mW (typ.)
· 5 V operation and 2.5 to 5.25 V operation for the digital outputs
· TTL compatible inputs, TTL and CMOS compatible outputs.


Application

· CCD camera systems


Pinout

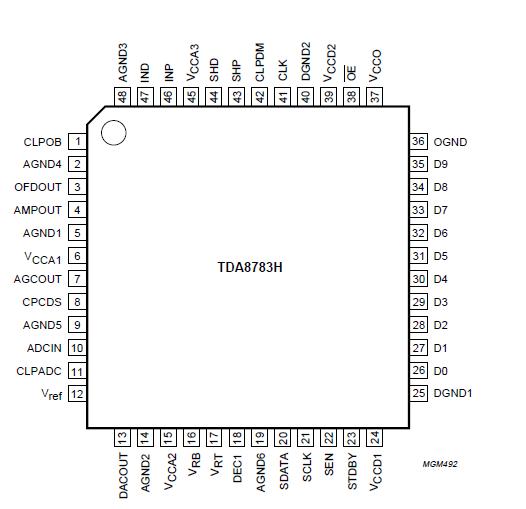

Connection Diagram


Description

The TDA8783 is a 10-bit analog-to-digital interface for CCD cameras. The device includes a correlated double sampling circuit, AGC and a low-power 10-bit Analog-to-Digital Converter (ADC) together with its reference voltage regulator.

The AGC and CDS have a bandwidth circuit controlled by on-chip DACs via a serial interface. A 10-bit DAC controls the ADC input clamp level.

An additional 8-bit DAC of the TDA8783 is provided for additional system controls; its output voltage range is 1.4 V (p-p) which is available at pin OFDOUT.
