TDA8772

` 8-bit resolution
` Sampling rate up to:
    35 MHz for TDA8772H/3
    85 MHz for TDA8772H/8
` Internal reference voltage regulator
` No deglitching circuit required
` SYNC, BLANK control inputs
` 3 independent clock inputs (one per DAC)
` 1 V output voltage range
` 75 W output load
` TDA8772 has BLANK control on the 3 channels
` Single 5 V power supply

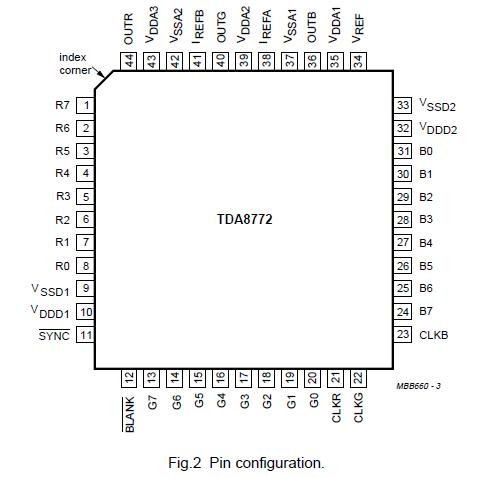

` 44-pin QFP package.

The TDA8772 is a triple 8-bit video Digital-to-Analog Converter (DAC). It converts the digital input signals into analog voltage outputs at a maximum conversion rate of 35 MHz (TDA8772H/3) and 85 MHz (TDA8772H/8).

The DAC is based on resistor-string architecture with integrated output buffers. The output voltage range is determined by a built-in reference source.

The device is fabricated in a 5 V CMOS process that ensures high functionality with low power dissipation.
