TDA8768A

Features: ` 12-bit resolution` Sampling rate up to 70 MHz` -3 dB bandwidth of 245 MHz` 5 V power supplies and 3.3 V output power supply` Binary or twos complement CMOS outputs` In-range CMOS compatible output` TTL and CMOS compatible static digital inputs` TTL and CMOS compatible digital outputs` ...

product image

TDA8768A Picture
See larger image
SeekIC No. : 004516842 Detail

TDA8768A: Features: ` 12-bit resolution` Sampling rate up to 70 MHz` -3 dB bandwidth of 245 MHz` 5 V power supplies and 3.3 V output power supply` Binary or twos complement CMOS outputs` In-range CMOS compati...

TDA8768A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8768A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 12-bit resolution
` Sampling rate up to 70 MHz
` -3 dB bandwidth of 245 MHz
` 5 V power supplies and 3.3 V output power supply
` Binary or twos complement CMOS outputs
` In-range CMOS compatible output
` TTL and CMOS compatible static digital inputs
` TTL and CMOS compatible digital outputs
` Differential AC or PECL clock input; TTL compatible
` Power dissipation  550 mW (typical)
` Low analog input capacitance (typical 2 pF), no buffer amplifier required
` Integrated sample-and-hold amplifier
` Differential analog input
` External amplitude range control
` Voltage controlled regulator included
` -40 to +85ambient temperature.



Application

· High-speed analog-to-digital conversion for:
· Cellular infrastructure (GSM and EDGE)
· Professional telecommunication
· Advanced FM radio
· Radar
· Imaging (camera scanner)
· Set Top Box (STB)
· Medical imaging.


Pinout

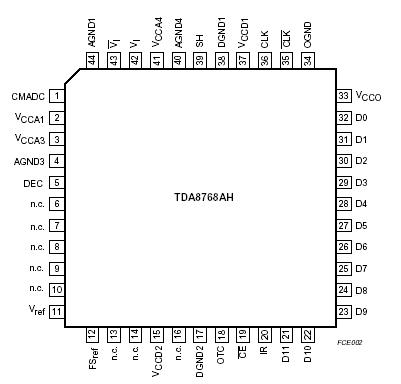

Connection Diagram


Specifications

Symbol Parameter Conditions Min Typ Max Unit
VCCA analog supply voltage   4.75 5.0 5.25 V
VCCD digital supply voltage   4.75 5.0 5.25 V
VCCO output supply voltage   3.0 3.3 3.6 V
ICCA analog supply current     78 87 mA
ICCD digital supply current     27 30 mA
ICCD output supply current fCLK = 20 MHz
fi = 400 kHz		   3 4 mA
INL integral non-linearity fCLK = 20 MHz
fi = 400 kHz		   ±2.6 ±4.5 LSB
DNL differential non-linearity
(no missing code)		 fCLK = 20 MHz
fi = 400 kHz		   ±0.5 +1.1
- 0.95		 LSB
fCLK(max) maximum clock frequency
TDA8768AH/4
TDA8768AH/5
TDA8768AH/7		   -
40
55
70		     -
MHz
MHz
MHz
Ptot total power dissipation fCLK = 55 MHz
fi = 20 MHz		   550 660 mW



Description

The TDA8768AH is a biCMOS 12-bit Analog-to-Digital Converter (ADC) optimized for GSM and EDGE cellular  nfrastructures, professional telecommunications and imaging, and advanced FM radio. It converts the analog input signal into 12-bit binary coded digital words at a maximum sampling rate of 70 MHz. All static digital inputs (SH, CE and OTC) are TTL and CMOS compatible and all outputs are CMOS compatible. A sine wave clock input signal can also be used.
