Product Details

Description



Features:

10-bit resolution (binary or gray code)
Sampling rate up to 40 MHz (/4 version)
Sampling rate up to 80 MHz (/8 version)
DC sampling allowed
One clock cycle


Application

High-speed analog-to-digital conversion for:
Video data digitizing
Radar pulse analysis
Transient signal analysis
High energy physics research
? modulators
Medical imaging.


Pinout

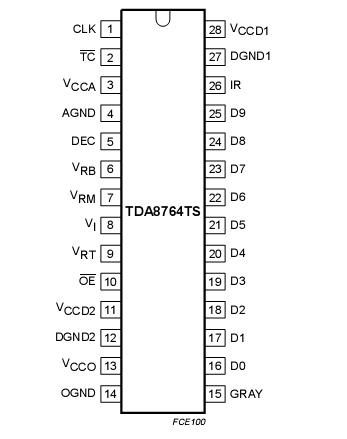

Connection Diagram


Description

The TDA8764TS is a 10-bit high-speed low-power
Analog-to-Digital Converter (ADC) for professional videoand other applications. It converts the analog input signal
into 10-bit binary or gray coded digital words at a maximumsampling rate of 40 MHz (/4 version) and 80 MHz(/8 version). All digital inputs and outputs are TTLcompatible, although a low-level sine wave clock inputsignal is allowed.
The device includes an internal voltage reference regulator.
