TDA8764A

Features: 10-bit resolution (binary or gray code) Sampling rate up to 60 MHz DC sampling allowed One clock cycle conversion only High signal-to-noise ratio over a large analog input frequency range (9.3 effective bits at 5 MHz full-scale input at fclk = 60 MHz) No missing codes guaranteed In Rang...

product image

TDA8764A Picture
See larger image
SeekIC No. : 004516838 Detail

TDA8764A: Features: 10-bit resolution (binary or gray code) Sampling rate up to 60 MHz DC sampling allowed One clock cycle conversion only High signal-to-noise ratio over a large analog input frequency range...

TDA8764A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8764A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

10-bit resolution (binary or gray code)
Sampling rate up to 60 MHz
DC sampling allowed
One clock cycle conversion only
High signal-to-noise ratio over a large analog input frequency range
   (9.3 effective bits at 5 MHz full-scale input at fclk = 60 MHz)
No missing codes guaranteed
In Range (IR) CMOS output
TTL and CMOS levels compatible digital inputs
2.7 to 3.6 V CMOS digital outputs
Low-level AC clock input signal allowed
Power dissipation only 312 mW
Low analog input capacitance, no buffer amplifier required
No sample-and-hold circuit required.


Application

High-speed analog-to-digital conversion for:
Video data digitizing
Radar pulse analysis
High energy physics research
Transient signal analysis
modulators
Medical imaging.


Pinout

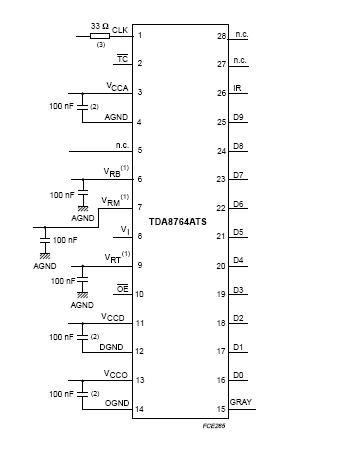

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCCA analog supply voltage   -0.3 +7.0 V
VCCD digital supply voltage   -0.3 +7.0 V
VCCO output stages supply voltage   -0.3 +7.0 V
VCC supply voltage difference between
VCCA - VCCD
VCCA - VCCO
VCCD - VCCO
-1.0
-1.0
-1.0
+1.0
+4.0
+4.0
V
V
V
VI input voltage referenced to AGND -0.3 +7.0 V
V i(sw)(p-p) AC input voltage for switching (peak-to-peak value) referenced to DGND - VCCD V
IO output current   - 10 mA
Tstg storage temperature   -55 +150 °C
Tamb ambient temperature   -40 +85 °C
Tj junction temperature   - 150 °C



Description

The TDA8764A is a 10-bit high-speed low-power Analog-to-Digital Converter (ADC) for professional video and other applications. It converts the analog input signal into 10-bit binary or gray coded digital words at a maximum sampling rate of 60 MHz. All digital inputs and outputs are TTL and CMOS compatible, although a low-level sine wave clock input signal is allowed.The device requires an external source to drive its reference ladder.
