TDA8763

Features:

* 10-bit resolution
* Sampling rate up to 50 MHz
* DC sampling allowed
* One clock cycle conversion only
* High signal-to-noise ratio over a large analog input frequency range (9.3 effective bits at 4.43 MHz full-scale
   input at fclk = 40 MHz)
* No missing codes guaranteed
* In-Range (IR) CMOS output
* Levels TTL and CMOS compatible digital inputs
* 3 to 5 V CMOS digital outputs
* Low-level AC clock input signal allowed
* Internal reference voltage regulator
* Power dissipation only 235 mW (typical)
* Low analog input capacitance, no buffer amplifier required
* No sample-and-hold circuit required.


Application

* Video data digitizing
* Radar pulse analysis
* Transient signal analysis
* High energy physics research
* modulators
* Medical imaging.

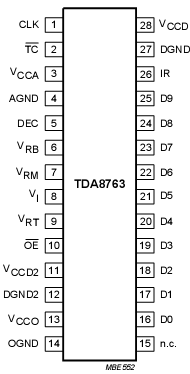

Pinout




Description

The TDA8763 is a 10-bit high-speed low-power Analog-to-Digital Converter (ADC) for professional video and other applications. It converts the analog input signal into 10-bit binary-coded digital words at a maximum sampling rate of 50 MHz. All digital inputs and outputs are
TTL and CMOS compatible, although a low-level sine wave clock input signal is allowed.

The device includes an internal voltage reference regulator. If the application requires that the reference is driven via external sources the recommendation is to use the TDA8763A.
