Product Details

Description



Features:

· 10-bit resolution
· Sampling rate up to 80 MHz
· DC sampling allowed
· One clock cycle conversion only
· High signal-to-noise ratio over a large analog input frequency range (9.3 effective bits at 4.43 MHz full-scale input at fclk = 80 MHz)
· No missing codes guaranteed
· In range (IR) TTL output
· TTL compatible digital inputs and outputs
· Low-level AC clock input signal allowed
· External reference voltage regulator
· Power dissipation only 380 mW (typical)
· Low analog input capacitance, no buffer amplifier required
· No sample-and-hold circuit required.


Application

High-speed analog-to-digital conversion for:
· Video data digitizing
· Radar pulse analysis
· Transient signal analysis
· High energy physics research
· SD modulators
· Medical imaging.


Pinout

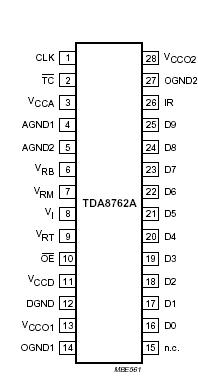

Connection Diagram


Specifications

Symbol Parameter Conditions Min Typ Max Unit
VCCA analog supply voltage   4.75 5.0 5.25 V
VCCD digital supply voltage   4.75 5.0 5.25 V
VCCO output stages supply voltage   4.4 5.0 5.25 V
ICCA analog supply current     29 36 mA
ICCD digital supply current     24 30 mA
ICCO output stages supply current CL = 15 pF; ramp input   23 30 mA
INL integral non-linearity fclk = 80 MHz; ramp input   ±0.75 ±1.5 LSB
DNL differential non-linearity
 fclk = 80 MHz; ramp input   ±0.3 ±0.7 LSB
fCLK(max) maximum clock frequency
TDA8762AM/6
TDA8762AM/8		   60
80
MHz
MHz
Ptot total power dissipation     380 500 mW



Description

The TDA8762A is a 10-bit high-speed analog-to-digital converter (ADC) for professional video and other applications. It converts the analog input signal into 10-bit binary-coded digital words at a maximum sampling rate of 80 MHz. All digital inputs and outputs are TTL compatible, although a low-level sine wave clock input signal is allowed.
