TDA8762

Features: * 10-bit resolution* Sampling rate up to 40 MHz* DC sampling allowed* One clock cycle conversion only* High signal-to-noise ratio over a large analog input frequency range (9.4 effective bits at 4.43 MHz full-scalinput at fclk = 40 MHz)* No missing codes guaranteed* In range (IR) TTL ou...

product image

TDA8762 Picture
See larger image
SeekIC No. : 004516832 Detail

TDA8762: Features: * 10-bit resolution* Sampling rate up to 40 MHz* DC sampling allowed* One clock cycle conversion only* High signal-to-noise ratio over a large analog input frequency range (9.4 effective b...

TDA8762 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8762
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 10-bit resolution
* Sampling rate up to 40 MHz
* DC sampling allowed
* One clock cycle conversion only
* High signal-to-noise ratio over a large analog input frequency range (9.4 effective bits at 4.43 MHz full-scalinput at fclk
   = 40 MHz)
* No missing codes guaranteed
* In range (IR) TTL output
* TTL compatible digital inputs and outputs
* Low-level AC clock input signal allowed
* External reference voltage regulator
* Power dissipation only 380 mW (typical)
* Low analog input capacitance, no buffer amplifier required
* No sample-and-hold circuit required.


Application

High-speed analog-to-digital conversion for:
* Video data digitizing
* Radar pulse analysis
* Transient signal analysis
* High energy physics research
* modulators
* Medical imaging.

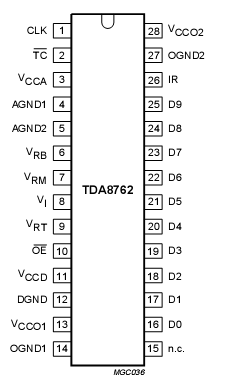

Pinout

Connection Diagram


Description

   High-speed analog-to-digital conversion for the TDA8762:
* Video data digitizing
* Radar pulse analysis
* Transient signal analysis
* High energy physics research
* modulators
* Medical imaging.
