TDA8760

` 10-bit resolution
` Sampling rate up to 40 MHz
` Total Harmonic Distortion (THD): -65 dB at 4.43 MHz full-scale and a 40 MHz clock frequency
` High signal-to-noise ratio over a large analog input frequency range (8.8 effective bits at 10 MHz full-scale input at a 40 MHz clock frequency)
` +5 V power supplies
` Binary or two's complement 3-state TTL outputs
` In-range 3-state TTL output
` TTL compatible digital inputs
` LOW-level AC clock input signal allowed
` Power dissipation 850 mW (typical)
` Low analog input capacitance (typ. 4.5 pF), no buffer amplifier required
` No external sample-and-hold circuit required
` Analog Input; single or differential
` External amplitude range control
` Voltage controlled regulator included.

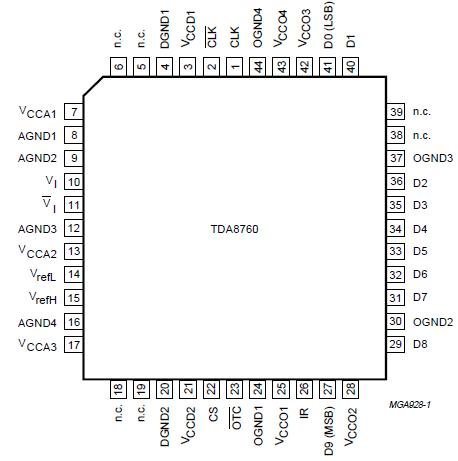

The TDA8760 is a monolithic bipolar 10-bit Analog-to-Digital Converter (ADC) for video or other applications. It converts the analog input signal into 10-bit binary coded digital words at a maximum sampling rate of 40 MHz. All digital inputs and outputs are TTL compatible. However, a sine wave clock input signal is allowed.
