TDA8757

Features: · Triple 8-bit ADC· Sampling rate up to 170 Msps· IC controllable by a serial interface which can be I2C-bus or 3W-bus, selected by a TTL input pin· Three clamps for programming a clamping code from -63.5 to +64 in steps of 1/2 LSB (RGB) and from +120 to +136 in steps of 1¤2 LSB (YUV)· T...

product image

TDA8757 Picture
See larger image
SeekIC No. : 004516829 Detail

TDA8757: Features: · Triple 8-bit ADC· Sampling rate up to 170 Msps· IC controllable by a serial interface which can be I2C-bus or 3W-bus, selected by a TTL input pin· Three clamps for programming a clamping...

TDA8757 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8757
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Triple 8-bit ADC
· Sampling rate up to 170 Msps
· IC controllable by a serial interface which can be I2C-bus or 3W-bus, selected by a TTL input pin
· Three clamps for programming a clamping code from -63.5 to +64 in steps of 1/2 LSB (RGB) and from +120 to +136 in steps of 1¤2 LSB (YUV)
· Three controllable amplifiers: gain controlled by the serial interface to produce a full-scale resolution of 1¤2 LSB peak-to-peak
· Amplifier bandwidth of 250 MHz
· Low gain variation with temperature
· PLL controllable through the serial interface to generate the ADC clock which can be locked to any line frequency of 15 to 150 kHz
· Integrated PLL divider
· Programmable phase clock adjustment cells
· Internal voltage regulators
· TTL compatible digital inputs and outputs
· Outputs on one port or demultiplexed on two ports; selectable with the serial interface
· Chip enable, high-impedance ADC output
· Power-down mode
· 1.5 W power dissipation
· Sync on green extractor.


Application

·RGB/YUV high-speed digitizing
·LCD panels drive
·LCD projection systems
·VGA to UXGA (1600 ´ 1200 at 60 Hz) modes.

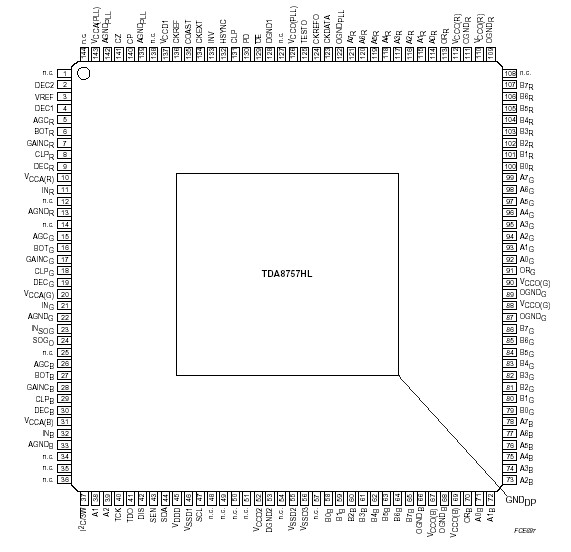

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCCA analog supply voltage   -0.3 +7.0 V
VDDD logic supply voltage   -0.3 +7.0 V
VCCD digital supply voltage   -0.3 +7.0 V
VCCO output stages supply voltage   -0.3 +7.0 V
VCC supply voltage differences
VCCA - VCCD
VCCO - VCCD
VCCO - VDDD
VCCA - VDDD
VCCD - VDDD
VCCA - VCCO		   -1.0
-1.0
-1.0
-1.0
-1.0
-1.0		 +1.0
+1.0
+1.0
+1.0
+1.0
+1.0		 V
V
V
V
V
V
Vi(RGB) RGB input voltage range referenced
to AGND		 -0.3 +7.0 V
Io output current   - 10 mA
Tstg
 storage temperature   -55 +150 °C
Tamb ambient temperature   0 70 °C
Tj junction temperature   - 150 °C



Description

The TDA8757 is a triple 8-bit ADC for the digitizing of large bandwidth RGB/YUV signals at a sampling rate up to 170 Msps.

The IC supports display resolutions up to 1600 ´ 1200 (UXGA) at 60 Hz.

The TDA8757 also includes a PLL that can be locked to the horizontal line frequency and generates the ADC clock. The PLL jitter is minimized for high resolution PC graphics applications. An external clock signal can also be used to clock the ADC.

The outputs are available either on one port up to 110 Msps or on two ports up to 170 Msps. The operating mode is selectable with the serial interface to for either I2C-bus or 3-wire serial bus (3W-bus) operation.

The clamp level, the gain and the other settings of TDA8757 are controllable through the serial interface.
