TDA8752

Features: Triple 8-bit ADCrate up to 100 MHzIC controllable via a serial interface, which can be either I2C-bus or 3-wire, selected via a TTL input pinIC analog voltage input from 0.4 to 1.2 V (p-p) to produce full-scale ADC input of 1 V (p-p)3 clamps for programming a clamping code between -63.5 ...

product image

TDA8752 Picture
See larger image
SeekIC No. : 004516824 Detail

TDA8752: Features: Triple 8-bit ADCrate up to 100 MHzIC controllable via a serial interface, which can be either I2C-bus or 3-wire, selected via a TTL input pinIC analog voltage input from 0.4 to 1.2 V (p-p)...

TDA8752 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8752
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Triple 8-bit ADC
rate up to 100 MHz
IC controllable via a serial interface, which can be either I2C-bus or 3-wire, selected via a TTL input pin
IC analog voltage input from 0.4 to 1.2 V (p-p) to produce full-scale ADC input of 1 V (p-p)
3 clamps for programming a clamping code between -63.5 and +64 in steps of 1/2LSB
3 controllable amplifiers: gain controlled via the serial interface to produce a full scale resolution of 1/2LSB peak-to-peak
Amplifier bandwidth of 250 MHz
Low gain variation with temperature
PLL, controllable via the serial interface to generate the ADC clock, which can be locked to a line frequency from 15 to 280 kHz
Integrated PLL divider
Programmable phase clock adjustment cells
Internal voltage regulators
TTL compatible digital inputs and outputs
Chip enable high-impedance ADC output
Power-down mode
Possibility to use up to four ICs in the same system, using the I2C-bus interface, or more, using the 3-wire serial interface
1 W power dissipation.


Application

R, G and B high speed digitizing
LCD panels drive
LCD projection systems
VGA and higher resolutions
Using two ICs in parallel, higher display resolution can be obtained; 200 MHz pixel frequency.


Pinout

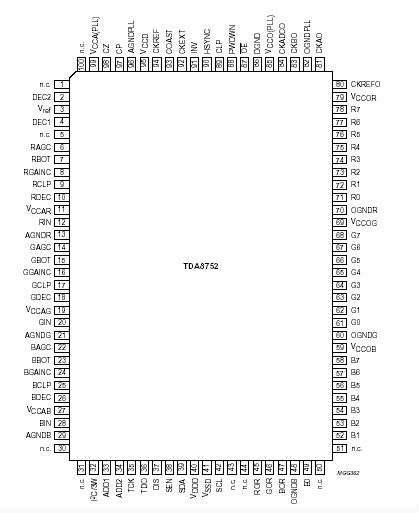

Connection Diagram


Description

The TDA8752 is a triple 8-bit ADC with controllable amplifiers and clamps for the digitizing of large bandwidth RGB signals.

The clamp level, the gain and all of the other settings are controlled via a serial interface (either I2C-bus or 3-wire serial bus, selected via a logic input).

The IC of the TDA8752 also includes a PLL that can be locked on the horizontal line frequency and generates the ADC clock. The PLL jitter is minimized for high resolution PC graphics applications. An external clock can also be input to the ADC.

It is possible to set the TDA8752 serial bus address between four fixed values, in the event that several TDA8752 ICs are used in a system, using the I2C-bus interface (for example, two ICs used in an odd/even configuration).
