TDA8708A

Features: · 8-bit resolution· Sampling rate up to 32 MHz· Binary or two's complement 3-state TTL outputs· TTL-compatible digital inputs and outputs· Internal reference voltage regulator· Power dissipation of 365 mW (typical)· Input selector circuit (one out of three video inputs)· Clamp and Automa...

product image

TDA8708A Picture
See larger image
SeekIC No. : 004516817 Detail

TDA8708A: Features: · 8-bit resolution· Sampling rate up to 32 MHz· Binary or two's complement 3-state TTL outputs· TTL-compatible digital inputs and outputs· Internal reference voltage regulator· Power dissi...

TDA8708A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8708A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 8-bit resolution
· Sampling rate up to 32 MHz
· Binary or two's complement 3-state TTL outputs
· TTL-compatible digital inputs and outputs
· Internal reference voltage regulator
· Power dissipation of 365 mW (typical)
· Input selector circuit (one out of three video inputs)
· Clamp and Automatic Gain Control (AGC) functions for CVBS and Y signals
· No sample-and-hold circuit required.
· The TDA8708A has white peak control in modes 1 and 2 whereas the TDA8708B has control in mode 1 only.




Application

· Video signal decoding
· Scrambled TV (encoding and decoding)
· Digital picture processing
· Frame grabbing.

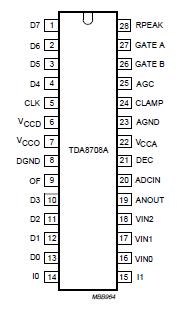

Pinout

Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VCCA
 analog supply voltage
-0.3
+7.0
 V
VCCD
 digital supply voltage
-0.3
+7.0
 V
VCCO
 output supply voltage
-0.3
+7.0
 V
VCC
 supply voltage difference between VCCA and VCCD
-1.0
+1.0
 V
supply voltage difference between VCCO and VCCD
-1.0
+1.0
 V
supply voltage difference between VCCA and VCCO
-1.0
+1.0
 V
VI
 input voltage
- 0.3
VCCA
 V
IO
 output current
0
+10
 mA
Tstg
 storage temperature
-55
+150
Tamb
 operating ambient temperature
0
+70
Tj
 junction temperature
0
+125



Description

The TDA8708A is an analog input interface for video signal processing. It includes a video amplifier with clamp and gain control, an 8-bit analog-to-digital converter (ADC) with a sampling rate of 32 MHz and an input selector.
