Product Details

Description

Features:

` YUV/RGB and fast blanking switch
` 3-state output
` Selectable clamp:
passive (with diodes) or
active clamp
` Bandwidth greater than 22 MHz
` Fully ESD protected
` Latch-up free.

Application

· Standard and high definition television sets
· Peri-television sets

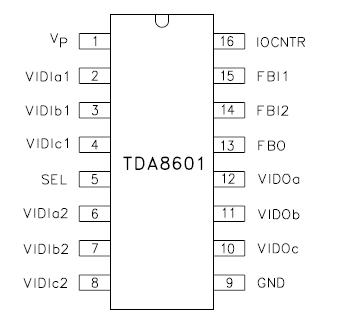

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
V_P	supply voltage	-0.3	+12	V
Vi	input voltage (pins 2 to 4 and 6 to 8) referenced to ground	0	8.8	V
Tj	junction temperature	-	150	°C
Tstg	IC storage temperature	-55	+150	°C

Description

The TDA8601 is intended for switching between two RGB or YUV video sources. The outputs can be set to a high-impedance state to enable parallel connection of several devices.

A HIGH level on SEL (pin 5) selects the video inputs of Channel 2. The IOCNTR control pin (pin 16) defines the 3-state outputs and clamp inputs:
· HIGH = 3-state outputs (also for test; active clamp)
· LOW = passive clamp at the video inputs (diode)
· Sandcastle: the TDA8601 video signal is clamped with an active clamp during the sync pulse.
