Product Details

Description



Features:

` Low quiescent current
` Low distortion
` Low output offset voltage
` Soft thermal clipping to prevent audio holes
` External mute timer for low start-up plop (also allows a fast mute function)
` High output power
` Operating, mute and standby mode selection by two-pin or single-pin operation
` Diagnostic information available:
    Dynamic Distortion Detection (DDD)
    High temperature detection
    Short-circuit detection
    Detection of output offset due to leakage current at the input
` No switch-on/switch-off plops when switching between standby and mute modes or between mute and operating modes
` Fast mute with supply voltage drops
` Package with flexible leads
` All outputs can withstand short-circuits to ground, to the positive supply voltage and across the load
` Pin CP can withstand short-circuits to its adjacent pins, all other pins can withstand short-circuits to ground and to the positive supply voltage
` ESD protection on all pins
` Thermal protection against junction temperatures exceeding 150 °C
` Load dump protection
` Protected against open ground pins (loss of ground) and outputs short-circuited to supply ground
` All negative outputs are protected against open supply voltage and output short-circuited to supply voltage
` Reverse-polarity safe.


Pinout

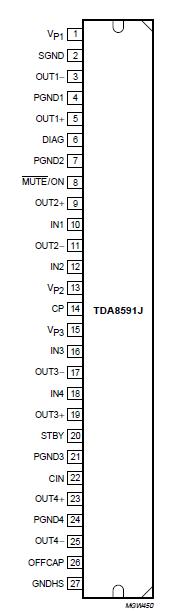

Connection Diagram


Description

The TDA8591J is a quad BTL audio power amplifier comprising four independent amplifiers in Bridge Tied Load (BTL) configuration. Each amplifier has a gain of 26 dB and supplies an output power of 75 W (EIAJ) into a 2 W load. The TDA8591J has low quiescent current and is primarily developed for car audio applications.
