Product Details

Description

Features:

· Requires very few external components
· High output power
· Low output offset voltage
· Fixed gain
· Diagnostic facility (distortion, short-circuit and temperature pre-warning)
· Good ripple rejection
· Mode select switch (operating, mute and standby)
· Load dump protection
· Short-circuit safe to ground and to VP and across the load
· Low power dissipation in any short-circuit condition
· Thermally protected
· Reverse polarity safe
· Electrostatic discharge protection
· No switch-on/switch-off plop
· Flexible leads
· Low thermal resistance
· Pin compatible with the TDA8568Q, except for the gain.

Application

· The device is primarily developed for car radio applications.

Pinout

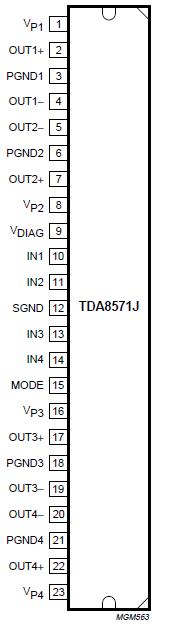

Connection Diagram

Description

The TDA8571J is a integrated class-B output amplifier contained in a 23-lead Single-In-Line (SIL) plastic power package. It contains four amplifiers in a BTL configuration, each with a gain of 34 dB. The output power is 4 40 W (EIAJ) into a 4 load.
