TDA8569Q

Features: ` Capable of driving 2 loads` Requires very few external components` High output power` Low output offset voltage` Fixed gain` Diagnostic facility (distortion, short-circuit and temperature pre-warning)` Good ripple rejection` Mode select switch (operating, mute and standby)` Load dump ...

product image

TDA8569Q Picture
See larger image
SeekIC No. : 004516799 Detail

TDA8569Q: Features: ` Capable of driving 2 loads` Requires very few external components` High output power` Low output offset voltage` Fixed gain` Diagnostic facility (distortion, short-circuit and temperatu...

TDA8569Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8569Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Capable of driving 2 loads
` Requires very few external components
` High output power
` Low output offset voltage
` Fixed gain
` Diagnostic facility (distortion, short-circuit and temperature pre-warning)
` Good ripple rejection
` Mode select switch (operating, mute and standby)
` Load dump protection
` Short-circuit safe to ground and to VP and across the load
` Low power dissipation in any short-circuit condition
` Thermally protected
` Reverse polarity safe
` Electrostatic discharge protection
` No switch-on/switch-off plop
` Flexible leads
` Low thermal resistance
` Pin compatible with the TDA8567Q.


Application

· The device is primarily developed for car radio applications.




Pinout

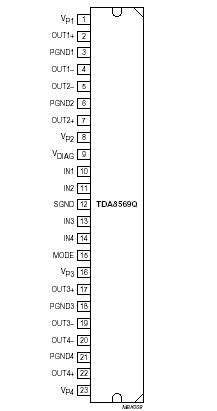

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
 supply voltage
operating
-
18
V
non-operating
-
30
V
load dump protection;
during 50 ms; tr 2.5 ms
-
45
V
Vsc(safe))
 short-circuit safe voltage
-
18
V
Vrp
 reverse polarity voltage
-
6
V
IOSM
 non-repetitive peak output current
-
10
A
IOSM
 repetitive peak output current
-
7.5
A
Ptot
 total power dissipation
-
60
W
Tstg
 storage temperature
-55
+150
Tamb
 operating ambient temperature
-40
+85
Tvj
 virtual junction temperature

-
150



Description

The TDA8569Q is an integrated class-B output amplifier in a 23-lead Single-In-Line (SIL) plastic power package.

It contains four amplifiers in BTL configuration, each with a gain of 26 dB. The output power is 4 *25 in a 4 W load.
