TDA8566Q

Features: · Differential inputs· Very high Common Mode Rejection Ratio (CMRR)· High common mode input signal handling· Requires very few external components· High output power· 4 and 2 W load driving capability· Low offset voltage at output· Fixed gain· Diagnostic facility (distortion, short-circu...

product image

TDA8566Q Picture
See larger image
SeekIC No. : 004516795 Detail

TDA8566Q: Features: · Differential inputs· Very high Common Mode Rejection Ratio (CMRR)· High common mode input signal handling· Requires very few external components· High output power· 4 and 2 W load drivin...

TDA8566Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8566Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Differential inputs
· Very high Common Mode Rejection Ratio (CMRR)
· High common mode input signal handling
· Requires very few external components
· High output power
· 4 and 2 W load driving capability
· Low offset voltage at output
· Fixed gain
· Diagnostic facility (distortion, short-circuit and temperature pre-warning)
· Good ripple rejection
· Mode select switch (operating, mute and standby)
· Load dump protection
· Short-circuit proof to ground, to VP and across the load
· Low power dissipation in any short-circuit condition
· Thermally protected
· Reverse polarity safe
· Protected against electrostatic discharge
· No switch-on/switch-off plop
· Flexible leads
· Low thermal resistance.


Pinout

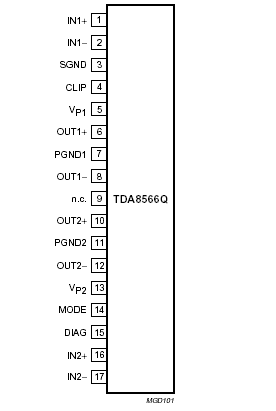

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
 supply voltage operating
-
18
V
non-operating
-
30
V
during 50 ms; load dump
protection trise 2.5 ms
-
45
V
IOSM
 non-repetitive peak output current
-
10
A
IORM
 repetitive peak output current
-
7.5
A
Tstg
 storage temperature
-55
+150
Tvj
 virtual junction temperature
-
150
Tamb
 ambient temperature
-40
+85
Vpsc
 short-circuit safe voltage
-
18
V
Vpr
 reverse polarity
-
6.0
V
Ptot
 total power dissipation
-
60
W



Description

The TDA8566Q is an integrated class-B output amplifier contained in a 17-lead single-in-line (SIL; bent to DIL) plastic power package. The device contains 2 amplifiers in a Bridge-Tied Load configuration (BTL). The output power is 2 * 25 W in a 4 load or 2 * 40 W in a 2 load. It has a differential input stage and 2 diagnostic outputs. The device is primarily developed for car radio applications.
