TDA8565Q

Features: · Requires very few external components· High output power· Fixed gain· Diagnostic facility (distortion, short-circuit and temperature detection)· Good ripple rejection· Mode select switch (operating, mute and standby)· Load dump protection· AC and DC short-circuit safe to ground and to ...

product image

TDA8565Q Picture
See larger image
SeekIC No. : 004516793 Detail

TDA8565Q: Features: · Requires very few external components· High output power· Fixed gain· Diagnostic facility (distortion, short-circuit and temperature detection)· Good ripple rejection· Mode select switch...

TDA8565Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8565Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Requires very few external components
· High output power
· Fixed gain
· Diagnostic facility (distortion, short-circuit and temperature detection)
· Good ripple rejection
· Mode select switch (operating, mute and standby)
· Load dump protection
· AC and DC short-circuit safe to ground and to VP
· Low power dissipation in any short-circuit condition
· Thermally protected
· Reverse polarity safe
· Electrostatic discharge protection
· No switch-on/switch-off plop
· Flexible leads
· Low thermal resistance
· Identical inputs.


Application

· The device is primarily developed for car radio applications.


Pinout

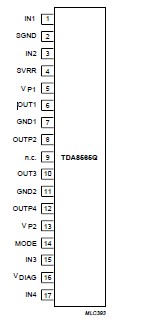

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
supply voltage
operating
non-operating
load dump protection
during 50 ms; tr 2.5 ms
18
30
45
V
V
V
Vpsc
AC and DC short-circuit safe voltage
18
V
Vpr
reverse polarity
6
V
IOSM
non-repetitive peak output current
6
A
IORM
repetitive peak output current
4
A
Ptot
total power dissipation
60
W
Tstg
storage temperature
-55
+150
Tamb
operating ambient temperature
-40
+85
Tvj
virtual junction temperature
150



Description

The TDA8565Q is an integrated class-B output amplifier in a 17-lead DIL-bent-to-SIL power package. It contains 4X 12 W single-ended amplifiers.
