TDA8563AQ

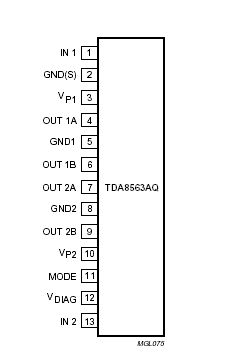

The TDA8563AQ is an integrated class-B output amplifier in a 13-lead single-in-line (SIL) power package. It contains 2 ´ 40 W/2 W amplifiers in a BTL configuration.The device is primarily developed for car radio applications.

TDA8563AQ has many unique features: The first one is it requires very few external components.The second one is high output power.The third one is low output offset voltage.The forth one is diagnostic facility (distortion, short-circuit and temperature pre-warning).The fifth one is good ripple rejection.The sixth one is mode select switch (operating, mute and standby).The seventh one is load dump protection.The eighth one is short-circuit safe to ground and to VP and across the load.The ninth one is Low power dissipation in any short-circuit condition.The tenth one is thermally protected.

There are some limiting values about TDA8563AQ.operating supply voltage(VP) is 6 V min, 14.4 V typ and 18 V max.repetitive peak output current(IORM) is 7.5 A max.total quiescent current(Iq(tot)) is 115 mA typ.standby current(Istb) is 0.1 mA typ and 10 uA max.switch-on current(Isw ) is 40 uA max.input impedance(ïZiï ) is 25 kW min and 30 kW max.output power(Po,THD = 10%) is 25 W typ.supply voltage ripple rejection(SVRR,Rs = 0 ohm) is 60 dB typ.channel separation(acs,Rs = 10 kohm) is 50 dB typ.closed loop voltage gain(Gv) is 25 dB min, 26 dB typ and 27 dB max.noise output voltage(Vn(o),Rs = 0ohm) is 120 mV max.DC output offset voltage(ïDVOï) is 150 mV max.
