Features:

· Requires very few external components
· High output power
· Fixed gain
· Diagnostic facility (distortion, short-circuit and temperature detection)
· Good ripple rejection
· Mode select switch (operating, mute and stand-by)
· Load dump protection
· AC and DC short-circuit safe to ground and to VP
· Low power dissipation in any short-circuit condition
· Thermally protected
· Reverse polarity safe
· Electrostatic discharge protection
· No switch-on/switch-off plop
· Flexible leads
· Low thermal resistance
· Identical inputs.


Application

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.




Pinout

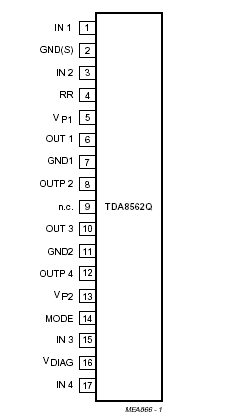

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
 supply voltage
operating
non-operating
load dump protection		 during 50 ms; tr 2.5 ms
-
-
-
18
30
45
V
V
V
IOSM
 non-repetitive peak output current
-
6
A
IORM
 repetitive peak output current
-
4
A
Tstg
 storage temperature
-55
+150
Tamb
 ambient temperature
-40
+85
Tvj
 virtual junction temperature
-
150
Vpsc
 AC and DC short-circuit safe voltage
-
18
V
Vpr
 reverse polarity
-
6
V
Ptot
 total power dissipation
-
60
W



Description

The TDA8562Q is an integrated class-B output amplifier in a 17-lead single-in-line (SIL) power package. It contains
 4 × 12 W single-ended amplifiers.
