TDA8547TS

Features:

· Selection between output channels
· Flexibility in use
· Few external components
· Low saturation voltage of output stage
· Gain can be fixed with external resistors
· Standby mode controlled by CMOS compatible levels
· Low standby current
· No switch-on/switch-off plops
· High supply voltage ripple rejection
· Protected against electrostatic discharge
· Outputs short-circuit safe to ground, V_CC and across the load
· Thermally protected.


Application

· Telecommunication equipment
· Portable consumer products
· Personal computers
· Motor-driver (servo).

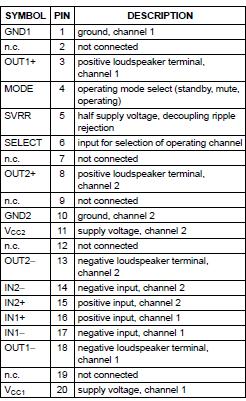

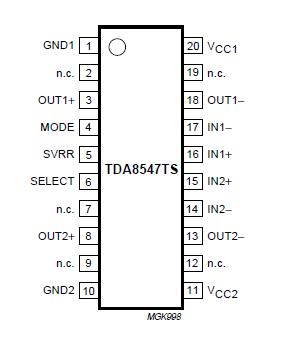

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VDD	supply voltage	operating	-0.3	+18	V
VI	input voltage (all inputs)		-0.3	VDD + 0.3	V
IOH	maximum source current for all port lines		-	1	A
IOL	maximum sink current for all port lines		-55	+150
Ptot	total power dissipation		-40	+85
Tstg	storage temperature			10	V
Tamb	operating ambient temperature (for all devices)			1.1	W

Description

The TDA8547TS is a two channel audio power amplifier for an output power of 2 ´ 0.7 W with a 16 W load at a 5 V
supply. At a low supply voltage of 3.3 V an output power of 0.6 with an 8 load can be obtained. The TDA8547TS contains two BTL amplifiers with a complementary PNP-NPN output stage and standby/mute logic. The operating condition of all channels of the device (standby, mute or on) is externally controlled by the MODE pin. With the SELECT pin one of the output channels can be switched in the standby condition. This feature can be used for loudspeaker selection and also reduces the quiescent current consumption. When only one channel is used the maximum output power is 1.2 W.
