TDA8512J

Features: · Requires very few external components· High output power· Low output offset voltage Bridge-Tied Load (BTL) channel· Fixed gain· Good ripple rejection· Mode select switch: operating, mute and standby· Short-circuit safe to ground and across load· Low power dissipation in any short-circu...

product image

TDA8512J Picture
See larger image
SeekIC No. : 004516773 Detail

TDA8512J: Features: · Requires very few external components· High output power· Low output offset voltage Bridge-Tied Load (BTL) channel· Fixed gain· Good ripple rejection· Mode select switch: operating, mute...

TDA8512J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8512J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Requires very few external components
· High output power
· Low output offset voltage Bridge-Tied Load (BTL) channel
· Fixed gain
· Good ripple rejection
· Mode select switch: operating, mute and standby
· Short-circuit safe to ground and across load
· Low power dissipation in any short-circuit condition
· Thermally protected
· Reverse polarity safe
· Electrostatic discharge protection
· No switch-on and switch-off plops
· Flexible leads
· Low thermal resistance
· Identical inputs: inverting and non-inverting.


Application

· Multimedia systems
· Active speaker systems (stereo with sub woofer or QUAD).


Pinout

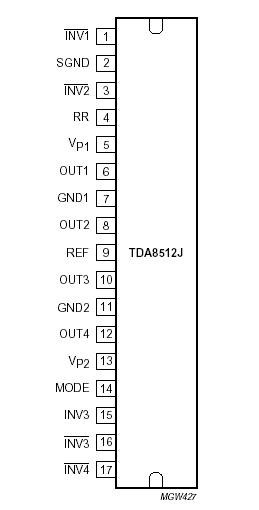

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS
MIN.
MAX.
UNIT
VP supply voltage operating
-
18
V
no signal
-
21
V
IOSM non-repetitive peak output current
-
6
A
IORM repetitive peak output current
-
4
A
Vsc short-circuit safe voltage operating; note 1
-
18
V
Vrp reverse polarity voltage
-
6
V
Ptot total power dissipation
-
60
W
Tstg storage temperature
-55
+150
°C
Tamb ambient temperature
-40
+85
°C
Tvj virtual junction temperature
-
150
°C



Description

The TDA8512J is an integrated class-B output amplifier in a 17-lead Single-In-Line (SIL) power package. It contains
4 ´ 13 WSingle Ended (SE) amplifiers of which two can be used to configure a 26 W BTL amplifier.
