Features:

· Requires very few external components
· High output power
· Fixed gain
· Diagnostic facility (distortion, short-circuit and temperature detection)
· Good ripple rejection
· Mode select switch (operating, mute and standby)
· AC and DC short-circuit safe to ground and to V_P· Low power dissipation in any short-circuit condition
· Thermally protected
· Reverse polarity safe
· Electrostatic discharge protection
· No switch-on/switch-off plop
· Flexible leads
· Low thermal resistance
· Identical inputs.

Application

The device is primarily developed for multi-media applications and active speaker systems.

Pinout

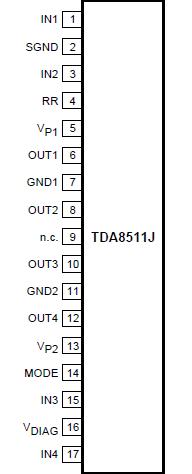

Connection Diagram

Specifications

PARAMETER	SYMBOL	CONDITIONS	MIN.	TYP.	MAX.	UNIT
Supply voltage	V_P		6	15	18	V
repetitive peak output current	I_ORM		-	-	4	A
total quiescent current	I_q(tot)		-	80	-	mA
standby current	I_stb		-	0.1	100	A
output power	P_o	THD = 10% R_L = 4 R_L = 2	- -	7 13	- -	W W
supply voltage ripple rejection	SVRR		46	-	-	dB
noise output voltage	V_n(o)	Rs = 0	-	50	-	V
input impedance	Z_i		50	-	-	K

Description

The TDA8511J is an integrated class-B output amplifier in a 17-lead DIL-bent-SIL power package. It contains 4 × 13 W single-ended amplifiers
