TDA8510J

Features: · Requires very few external components· High output power· Low output offset voltage (BTL channel)· Fixed gain· Diagnostic facility (distortion, short-circuit and temperature detection)· Good ripple rejection· Mode select switch (operating, mute and standby)· AC and DC short-circuit saf...

product image

TDA8510J Picture
See larger image
SeekIC No. : 004516771 Detail

TDA8510J: Features: · Requires very few external components· High output power· Low output offset voltage (BTL channel)· Fixed gain· Diagnostic facility (distortion, short-circuit and temperature detection)· ...

TDA8510J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8510J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Requires very few external components
· High output power
· Low output offset voltage (BTL channel)
· Fixed gain
· Diagnostic facility (distortion, short-circuit and temperature detection)
· Good ripple rejection
· Mode select switch (operating, mute and standby)
· AC and DC short-circuit safe to ground and to VP
· Low power dissipation in any short-circuit condition
· Thermally protected
· Reverse polarity safe
· Electrostatic discharge protection
· No switch-on/switch-off plop
· Flexible leads
· Low thermal resistance
· Identical inputs (inverting and non-inverting).


Application

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.




Pinout

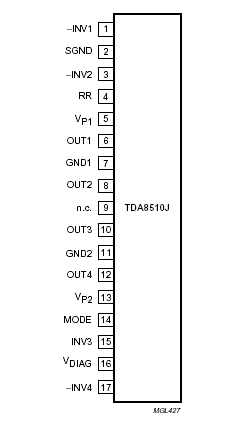

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
 supply voltage
operating
-
18
V
no signal
-
20
V
IOSM
 non-repetitive peak output current
-
6
A
IORM
 repetitive peak output current
-
4
A
Vsc
 AC and DC short-circuit safe voltage
-
18
V
Vrp
 reverse polarity voltage
-
6
V
Ptot
 total power dissipation
-
60
W
Tstg
 storage temperature
-55
+150
Tamb
 operating ambient temperature
-40
+85
Tvj
 virtual junction temperature
-
150



Description

The TDA8510J is an integrated class-B output amplifier in a 17-lead single-in-line (SIL) power package. It contains a 26 W Bridge-Tied Load (BTL) amplifier and 2 × 13 W Single-Ended (SE) amplifiers.
