TDA8505

• Two input stages, R, G, B and Y, −(R−Y), −(B−Y) with multiplexing.
• Chrominance processing, highly integrated, includes vertical identification, low frequency pre-emphasis and high frequency pre-emphasis (anti-Cloche) and
bandpass filter.
• Fully controlled FM modulator which produces a signal in accordance with the SECAM standard without adjustments.
• Two reference oscillators, one for D'R f0 (4.40625 MHz) and one for D'B f0 (4.250 MHz). These oscillators are tuned by PLL loop with the frequency of the line sync as reference. Crystal tuning, or tuning by external reference source, of the reference oscillators is possible.
• Output stages, CVBS and separated Y + SYNC and CHROMA. For CVBS output, signal amplitude 2 V (p−p) nominal, thus only an external emitter follower is
required for 75 Ω driving.
• Sync separator circuit and pulse shaper, to generate the required pulses for the processing, line, frame, FH/2 and chrominance blanking.
• A 3-level sandcastle pulse is generated for PAL/NTSC
to SECAM transcoding.
• FH/2 input for locking with another decoder.
• Colour killing on the internal colour difference signals.
• Internal bandgap reference.

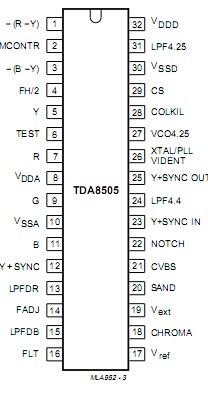

The TDA8505 is a highly integrated SECAM encoding IC that is designed for use in all applications that require transformation of R, G and B signals or Y, U and V signals to a standard SECAM signal.

The specification of the input signals of the TDA8505 is fully compatible with those of the TDA8501 PAL/NTSC encoder.
