Product Details

Description

Features:

* 5+5W OUTPUT POWER @ VCC = 22V; RL = 8
* LOW TURN-ON TURN-OFF POP NOISE
* LOW EXTERNAL COMPONENTS
* SHORT CIRCUIT &THERMAL OVERLOAD PROTECTION
* LINEAR VOLUME CONTROL BY DC VOLTAGE
* SOFT CLIPPING
* INTERNALLY FIXED GAIN
* ST-BY AND MUTE FUNCTIONS

Pinout

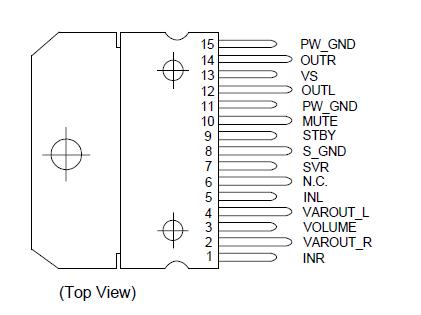

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
DC Supply voltage	V_S	35	V
Maximum Input Voltage	V_IN	8	V_PP
Volume Control DC Voltage	V₃	7	V
Total Power Dissipation (T_a = 80)	P_tot	15	W
Ambient Operating Temperature	T_amb	0 ~ 70
Junction Temperature	T_j	-40 ~ 150
Storage Temperature	T_stg	-40 ~ 150

Description

The UTC TDA8496 is a stereo 5+5W class AB power amplifier with mute and dc volume control,assembled in the HZIP-15 package. It is designed for high quality sound, LCD TV or LCD Monitor applications.
