Product Details

Description

Features:

· I²C-bus interface
· Input for vertical sync
· Sawtooth generator with amplitude independent of frequency
· Vertical deflection output stage driver
· East-west raster correction drive output
· EHT modulation input
· Changes picture width and height without affecting geometry.

Pinout

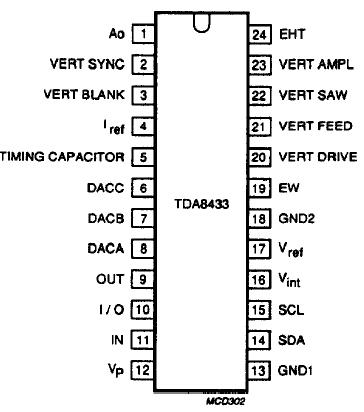

Connection Diagram

Description

The TDA8433 is an I²C-bus controlled deflection processor which, together with a sync processor (e.g. TDA2579A, see Fig.6), contains the control and drive functions of the deflection part in a computer controlled TV receiver. The TDA8433 replaces all picture geometry settings which were previously set manually during manufacture.
