Product Details

Description



Features:

· Source and mode selector for two stereo channels
· Pseudo stereo, spatial stereo, linear stereo and forced mono switch
· Volume and balance control
· Bass, treble and mute control
· Power supply with power-on reset

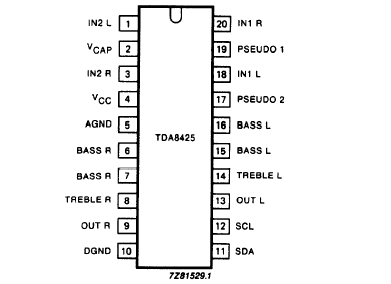

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
MIN.
MAX.
UNIT
supply voltage
VP
0
16
V
Voltage range for pins with external capacitors
Vcap
0
VCC
V
Voltage range for pins 11 and 12
VSDA, SCL
0
VCC
V
Voltage range at pins 1, 3, 9, 11, 12, 13, 18 and 20
VI/O
0
VCC
V
Output current at pins 9 and 13
IO
-
45
mA
Total power dissipation at Tamb < 70
Ptot
-
450
mW
Operating ambient temperature range
Tamb
0
70
storage temperature
Tstg
-25
+150
Note
1. Human body model: C = 100 pF, R = 1.5 k and V 4 kV;
charge device model: C = 200 pF, R = 0 and V 500 V.


Description

The TDA8425 is a monolithic bipolar integrated stereo sound circuit with a loudspeaker channel facility, digitally controlled via the I2C-bus for application in hi-fi audio and television sound.
