Product Details

Description



Features:

· Mode selector
· Spatial stereo, stereo and forced mono switch
· Volume and balance control
· Bass, treble and mute control
· Power supply with power-on reset


Application

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.




Pinout

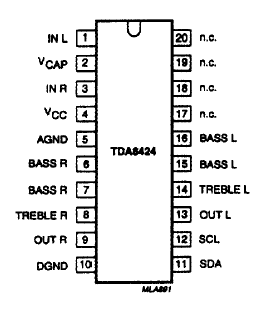

Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VCC
 supply voltage
0
16
V
Vcap
 Voltage range for pins with external capacitors
0
VCC
V
VSDA, SCL
 Voltage range for pins 11 and 12
0
VCC
V
VI/O
 voltage range at pins 1, 3, 9, 11, 12 and 13
0
VCC
V
IO
 Output current at pins 9 and 13
-
45
mA
Ptot
 Total power dissipation at Tamb < 70
-
450
mW
Tamb
 Operating ambient temperature range
0
+70
Tstg
 storage temperature
-25
+150
Vstat
 electrostatic handling
see note 1


Note
1. Electrostatic handling Human body model: C = 100 pF, R = 1.5 k and V 3 kV; charge device model:
    C = 200 pF, R = 0 and V 400 V.


Description

The TDA8424 is monolithic bipolar integrated stereo sound circuit with a loudspeaker channel facility, digitally controlled via the I2C-bus for application in hi-fi audio and television sound.
