TDA8351

Features: ` Few external components` Highly efficient fully DC-coupled vertical output bridge circuit` Vertical flyback switch` Guard circuit` Protection against: short-circuit of the output pins (7 and 4) short-circuit of the output pins to VP` Temperature protection` High EMC immunity because ...

product image

TDA8351 Picture
See larger image
SeekIC No. : 004516732 Detail

TDA8351: Features: ` Few external components` Highly efficient fully DC-coupled vertical output bridge circuit` Vertical flyback switch` Guard circuit` Protection against: short-circuit of the output pins (...

TDA8351 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8351
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Few external components
` Highly efficient fully DC-coupled vertical output bridge circuit
` Vertical flyback switch
` Guard circuit
` Protection against:
   short-circuit of the output pins (7 and 4)
   short-circuit of the output pins to VP
` Temperature protection
` High EMC immunity because of common mode inputs
` A guard signal in zoom mode.


Application

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.




Pinout

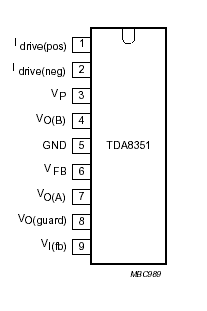

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
DC supply
VP
 supply voltage non-operating
-
40
V

-
25
V
VFB
 flyback supply voltage
-
50
V
note 1
-
60
V
Vertical circuit
IO(p-p)
 output current (peak-to-peak value) note 2
-
3
A
VO(A)
 output voltage (pin 7)
-
52
V
note 1
-
62
V
Flyback switch
IM
 peak output current
-
±1.5
A
Thermal data (in accordance with IEC 747-1)
Tstg
 storage temperature
-55
+150
Tamb
 operating ambient temperature
-25
+75
Tvj
 virtual junction temperature
-
150
Rth vj-c
 resistance vj-case
-
4
K/W
Rth vj-a
 resistance vj-ambient in free air
-
40
K/W
tsc
 short-circuiting time note 3
-
-
hr
Notes
1. A flyback supply voltage of >50 V up to 60 V is allowed in application. A 220 nF capacitor in series with a
   22 resistor (depending on IO and the inductance of the coil) has to be connected between pin 7 and ground.
   The decoupling capacitor of VFB has to be connected between pin 6 and pin 3. This supply voltage line must have
   a resistance of 33 (see application circuit Fig.6).
2. IO maximum determined by current protection.
3. Up to VP = 18 V.



Description

The TDA8351 is a power circuit for use in 90° and 110° colour deflection systems for field frequencies of 50 to 120 Hz. The circuit provides a DC driven vertical deflection output circuit, operating as a highly efficient class G system.
