TDA8222

Features: .3 STAGE IF GAIN CONTROLLED AMPLIFIER .SYNCHRONOUS VIDEO DEMODULATOR .TOP SYNC AGC CIRCUIT .WHITE AND BLACK NOISE INVERTER ·TUNER AGC OUTPUT FOR PNP TUNERS (suitable also for MOSFET tuners) .ANALOG AFC .FM DETECTOR·AUDIO AND VIDEO SWITCHES COMPAT IBLE WITH SCART EUROPEAN NORM .DC VOLUME ...

product image

TDA8222 Picture
See larger image
SeekIC No. : 004516712 Detail

TDA8222: Features: .3 STAGE IF GAIN CONTROLLED AMPLIFIER .SYNCHRONOUS VIDEO DEMODULATOR .TOP SYNC AGC CIRCUIT .WHITE AND BLACK NOISE INVERTER ·TUNER AGC OUTPUT FOR PNP TUNERS (suitable also for MOSFET tuners...

TDA8222 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8222
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.3 STAGE IF GAIN CONTROLLED AMPLIFIER
.SYNCHRONOUS VIDEO DEMODULATOR
.TOP SYNC AGC CIRCUIT
.WHITE AND BLACK NOISE INVERTER
·TUNER AGC OUTPUT FOR PNP TUNERS (suitable also for MOSFET tuners)
.ANALOG AFC
.FM DETECTOR
·AUDIO AND VIDEO SWITCHES COMPAT IBLE WITH SCART EUROPEAN NORM
.DC VOLUME CONTROL
·MUTE FUNCTION


Pinout

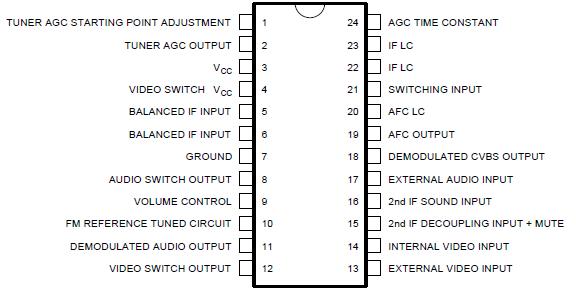

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
Vs Supply Voltage
13.5
V
VX Tuner AGC Voltage
VCC
V
Tstg Storage Temperature
-40, +150
Toper Operating Temperature
0, +70



Description

The TDA8222 is a video and sound IF circuit in Shrink DIP24 package for color and black and white TV sets. It is intended to operate with a negatively modulated vision carrier and frequency modulated sound carrier. It incorporates video and audio switches compatible with SCART european norm.
