Product Details

Description

Features:

.RGB OUTPUTS
·SINGLE CHIP CHROMA AND LUMINANCE PROCESSOR
·DC CONTROL BRIGHTNESS, CONTRAST,SATURATIONAND HUE
.FEWEXTERNAL COMPONENTS FAST BLANKING INPUT FOR OSD INSERTION
·SUPER SANDCASTLE INPUT

Pinout

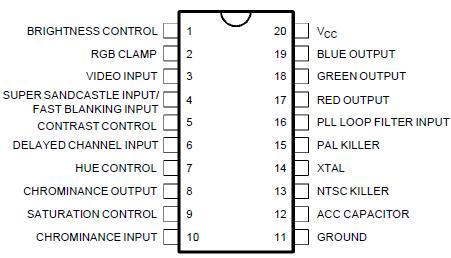

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	12	V
T_OPER	Operating Temperature	0 , + 70
T_STG	Storage Temperature	-55 , + 150

Description

The TDA8219 is a monolithic integrated color decoder for the PAL/NTSC standard. It includes in a 20 pins IC all the functions required for the identification anddemodulationofPAL/NTSCsignals, and all the videoprocessor functions up to the drive of the video stages. Used with TDA8213 (video & sound IF system)and TDA8214B(H/V deflection circuit), this IC permitsa complete low-cost solution for PAL/NTSCapplications.
