Product Details

Description

Features:

RGB OUTPUTS
SINGLE CHIP CHROMA AND LUMINANCE PROCESSOR
DC CONTROL BRIGHTNESS, CONTRAST, AND SATURATION
FEWEXTERNAL COMPONENTS FAST BLANKING INPUT FOR OSD INSER.
TION SUPER SANDCASTLE INPUT

Pinout

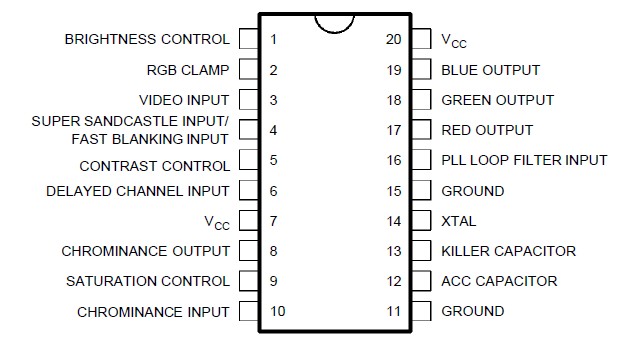

Connection Diagram

Specifications

VCC Supply Voltage .......................12 V
Toper Operating Temperature... 0 , + 70 oC
Tstg Storage Temperature.... -55 , + 150 oC

Description

The TDA8217 is a monolithic integrated color decoder for the PAL standard. It includes in a 20 pins IC all the functions required for the identification and demodulationof PALsignals, and all the videoprocessor functions up to the drive of the video stages. Used with TDA8213 (video & sound IF system)andTDA8214A(H/V deflectioncircuit), this IC permits a complete low-cost solution for PAL applications.
