TDA8215B: Plasma Drivers Deflection Circuit Sandcastl Gen Vid ID

TDA8215B Data Sheet

Get Latest Price

Part Number:: TDA8215B
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TDA8000 evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8000T evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8001 evaluate
Features: · Protected I/O line· VCC regulation (5 V ±5%, 100 mA max. with controlled rise and fall...

Product Details

Description

Series: -
Packaging: Tube
Mounting Type: Through Hole
Manufacturer: STMicroelectronics
Type: Video
Package / Case: 20-DIP (0.300", 7.62mm)
Supplier Device Package: 16-PowerDIP
Applications: PAL

Features:

.DIRECT LINE DARLINGTON DRIVE
.DIRECT FRAME-YOKE DRIVE (± 1A)
·COMPOSITE VIDEO SIGNAL INPUT CAPABILITY
·FRAME OUTPUT PROTECTION AGAINST SHORT CIRCUITS
.PLL
.VIDEO IDENTIFICATION CIRCUIT
.SUPER SANDCASTLE OUTPUT
.VERY FEWEXTERNAL COMPONENTS
·VERY LOWCOST POWER PACKAGE

Pinout

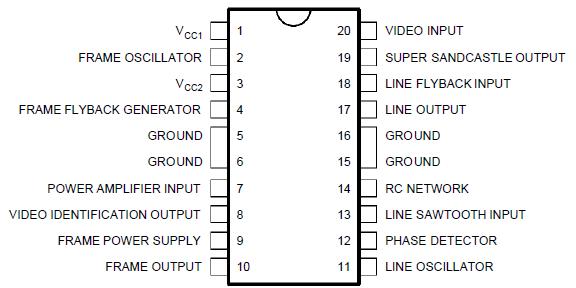

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC1	Supply Voltaget	30	V
V_CC2	Flyback Generator Supply Voltage	35	V
V9	Frame Power Supply Voltage	60	V
I10_NR	Frame Output Current (non repetitive)	± 1.5	A
I10	Frame Output Current (continuous)	± 1	A
V17	Line Output Voltage (external)	60	V
I_P17	Line Output Peak Current	0.8	A
I_C17	Line Output Continuous Current	0.4	A
T_STG	Storage Temperature	-40 to + 150
T_J	Max Operating Junction Temperature	+150
T_AMB	Operating Ambient Temperature	0 to 70

Description

The TDA8215Bis an horizontal and vertical deflection circuit with super sandcastle generator and video identification output. Used with TDA8213 (Video & Sound IF system) and TDA8217 (Pal decoder and video processor), this IC permits a complete low-cost solution for PAL applications. The TDA8215B has been specially designed for direct drive of line DARLINGTON transistors.
