Product Details

Description

Features:

.DIRECT FRAME-YOKE DRIVE (± 1A)
·COMPOSITE VIDEO SIGNAL INPUT CAPA BILITY
·FRAME OUTPUT PROTECTION AGAINST SHORT CIRCUITS
.PLL
.VIDEO IDENTIFICATION CIRCUIT
.SUPER SANDCASTLE OUTPUT
.VERY FEW EXTERNAL COMPONENTS
·VERY LOW COST POWER PACKAGE

Pinout

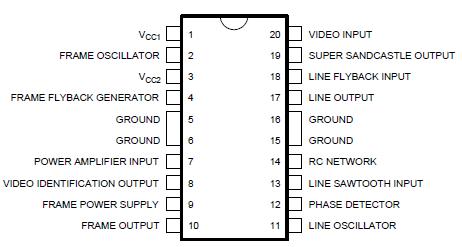

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC1	Supply Voltaget	30	V
V_CC2	Flyback Generator Supply Voltage	35	V
V9	Frame Power Supply Voltage	60	V
I10_NR	Frame Output Current (non repetitive)	± 1.5	A
I10	Frame Output Current (continuous)	± 1	A
V17	Line Output Voltage (external)	60	V
I_P17	Line Output Peak Current	0.8	A
I_C17	Line Output Continuous Current	0.4	A
T_STG	Storage Temperature	-40 to + 150
T_J	Max Operating Junction Temperature	+150
T_AMB	Operating Ambient Temperature	0 to 70

Description

The TDA8214B is an horizontal and vertical deflection circuit with super sandcastle generator and video identification output. Used with TDA8213 (Video & Sound IF system) and TDA8217 (Pal decoder and video processor), this IC permits a complete low-cost solution for PAL applications.
