Features:

·VERY LOWCURRENT ABSORPTION
·3 STAGE IF GAIN CONTROLLED AMPLIFIER
·SYNCHRONOUS VIDEO DEMODULATOR
·WHITE SPOT AND NOISE INVERTER
·AGC CIRCUIT WITH NOISE GATING
·TUNER AGC OUTPUT FOR PNP TUNERS
·FM DETECTOR AF AMPLIFIER WITH DC VOLUME CONTROL
·AFC 2 VPP ON VIDEO OUTPUT

Pinout

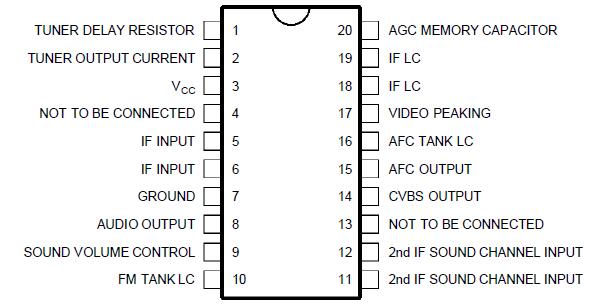

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply voltage	V_S	13.5	V
Tuner AGC voltage	V_X	VS	V
Power dissipation at T_AMB = 70	P	880	mW
Storage temperature range	T_STG	- 40, + 150

Description

The TDA8213 is a monolithic integrated circuit in DIP20 package for colour and black & white television receivers using PNP tuners. It is intended to operate with a negatively modulated vision carrier and frequencymodulated sound carrier. Used with TDA8214/15 (H/V deflection circuit) and TDA8213 (Pal decoder and video processor), this IC permits
a complete low-cost solution for PAL applications.
