TDA8204B

Features:

HIGHLY INTEGRATED TWO-CHIP SOLUTION FOR NICAM DEMODULATION (using TDA8205 QSPK)
DATA AND SOUND RECOVERY ACCORDING TO EBU SPB 424 SPECIFICATIONS
I²S INTERFACE FOR DIGITAL AUDIO PURPOSES (14-bit samples, 32kHz word select clock, 896kHz serial clock)
4 TIMES UP SAMPLING DIGITAL FILTER AND NOISE SHAPER
I²C INTERFACE FOR MICROCONTROLLER SOFTWARE DRIVE
PAY TV APPLICATION CAPABILITIES
AUTOMATIC ERROR MONITORING (programmable error rate limit)

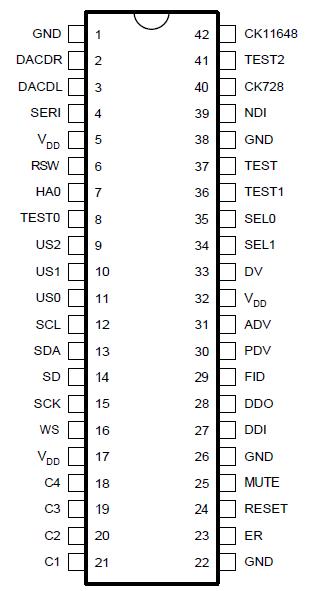

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDD	Supply Voltage	7	V
Ptot	Total Power Dissipation	1.2	W
Toper	Operating Temperature Range	0, + 70
Tstg	Storage Temperature Range	- 20, + 150

Description

The TDA8204B performs two main functions, first one is NICAM decoding, second one is audio signal recovery (DAC) combined with audio signal switching (Matrix). An I²S output is provided for digital audio when required and all functions of both the TDA8204B and the TDA8205 are accessed via an on-chip I²C bus interface. The I²S interface can be used as an input for converting to analog some I2S digital sound.
