Product Details

Description

Features:

· A DOUBLE TWO-INPUT CIRCUITS WITH SWITCHING FACILITIES
· A DOUBLE DC VOLUME CONTROL
· 12dB MAXIMUM GAIN
· 90dB SIGNAL DYNAMIC RANGE

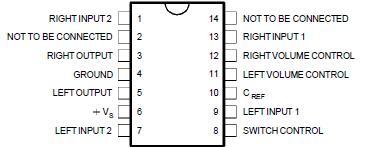

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage	16	V
T_stg	Storage Temperature	55 to 125
T_oper	Operating Ambient Temperature	0 to 70

Description

The TDA8198 is a monolithic integrated circuit in DIP14 package intented for TV applications which provides Audio switching facilities between two double inputs including DC volume control.
