Product Details

Description

Pinout

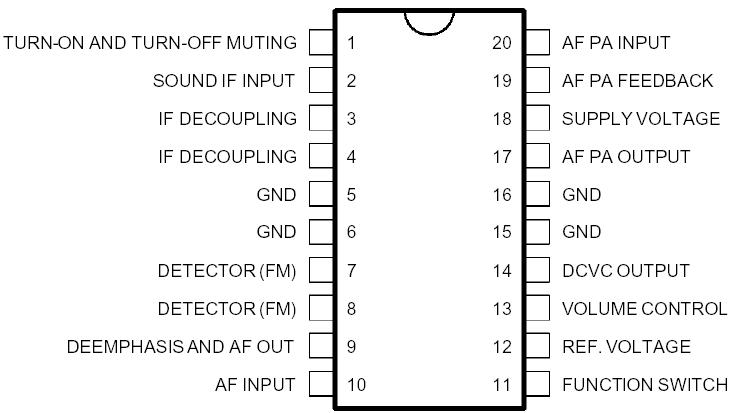

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage (pin 18)	28	V
V_l	Voltage at Pin 1	± VS
V_l	Input Voltage (pin 2)	1	V_PP
I_O	Output Peak Current (repetitive)	1.5	A
I_O	Output Peak Current (non repetitive)	2	A
P_tot	Total Power Dissipation : at T_pins = 90°C at T_amb = 70°C	4.3 1	W W
T_stg, T_j	Storage and Junction Temperature	40 to 150	°C

Description

The TDA8191 is a monolithic integrated circuit that includes all the functionsneeded fora completeTV sound channel.TheTDA8191 is assembled in a 20 pin dual in line power package.
