TDA8190

PinoutSpecifications Symbol Parameter Value Unit Vs Supply Voltage (pin 18) 28 V VI Voltage at Pin 1 ± Vs Vi Input Voltage (pin 2) 1 Vpp Io Output Peak Current (repetitive) 1.5 A Io Output Peak Current (non repetitive) 2 A I4 Current (pin 4) 10 mA Pt...

product image

TDA8190 Picture
See larger image
SeekIC No. : 004516697 Detail

TDA8190: PinoutSpecifications Symbol Parameter Value Unit Vs Supply Voltage (pin 18) 28 V VI Voltage at Pin 1 ± Vs Vi Input Voltage (pin 2) 1 Vpp Io Output Peak Current (repeti...

TDA8190 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8190
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

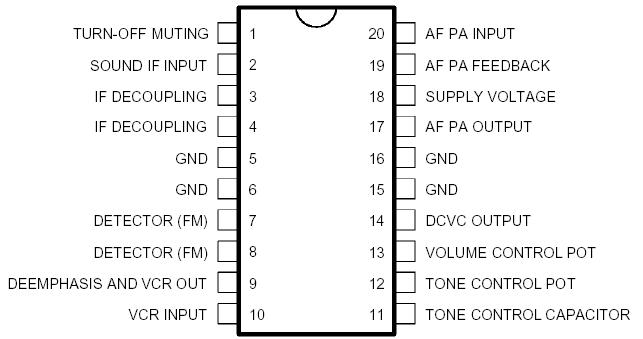

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vs Supply Voltage (pin 18) 28 V
VI Voltage at Pin 1 ± Vs
Vi Input Voltage (pin 2) 1 Vpp
Io Output Peak Current (repetitive) 1.5 A
Io Output Peak Current (non repetitive) 2 A
I4 Current (pin 4) 10 mA
Ptot Power Dissipation : at Tpins = 90 °C
                     at Tamb = 70 °C		 4.3
1		 W
W
Tstg - Tj Storage and Junction Temperature 40 to 150 °C



Description

The TDA8190is a completeTV soundchannel with DC tone and volume controls plus separate VCR input and output connections. Mounted in a Powerdip 16 + 2 + 2 package, the device delivers an output power of 4W into 16   (d = 10%, Vs = 24V) or 1.5W into 8   (d = 10%, Vs = 12V). Included in the TDA8190 are : IF amplifier limiter, active lowpass filter, AF pre-amplifier and power amplifier, turn-off muting, mute circuit and thermal protection. High output, high sensitivity, excellentAM rejection and low distortion make the TDA8190 suitable for use in TVs of almost every type. Further, no screening
is necessarybecausethe device is free of radiation problems.
