Product Details

Description

Features:

·POWERAMPLIFIER
·FLYBACKGENERATOR
·THERMAL PROTECTION

Pinout

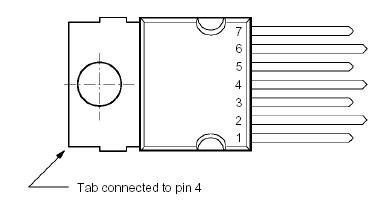

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage (pin 2)	50	V
V₅,V₆	Flyback Peak Voltage	100	V
V₁, V₇	Amplifier Input Voltage	+ VS
I_O	Output Peak Current Non-repetitive, t = 2ms f = 50 or 60Hz, t 3 10s f = 50 or 60Hz, t > 10s	2 2 1.8	A
I₃	Pin 3 DC at V₅< V₂Pin 3 Peak Flyback Current at f = 50 or 60Hz, tfly 3 1.5s	100 1.8	mA A
P_tot	Total Power Dissipation at T_C = 70	20	W
T_stg	Storage Temperature	- 40, + 150
T_j	Junction Temperature	0, +150

Description

Designed for monitors and high performance TVs, the TDA8179S vertical deflection booster delivers flyback voltages up to 90V.

The TDA8179S operates with supplies up to 42V and provides up to 2App output current to drive to yoke.

The TDA8179S is offered in HEPTAWATT package.
