Features:

·POWER AMPLIFIER
·FLYBACK SUPPLY VOLTAGE SEPARATED
·THERMAL PROTECTION

Pinout

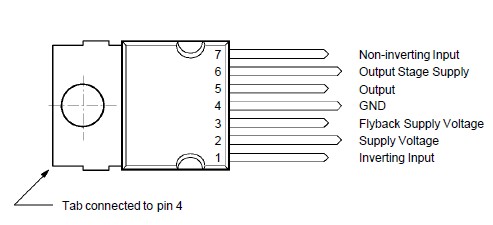

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage (pin 2)	50	V
V_F	Flyback Supply Voltage	100	V
V_F - V_S	Difference between Flyback Supply Voltage and Supply Voltage	50	V
V₁ , V₇	Amplifier Input Voltage	+ VS
I_O	Output Peak Current Non-repetitive, t = 2ms f = 50 or 60Hz, t 10ms f = 50 or 60Hz, t > 10ms	2 2 1.8	A
I₃	Pin 3 Peak Flyback Current at f = 50 or 60Hz, tfly 1.5ms	1.8	A
P_tot	Total Power Dissipation at T_C = 70	20	W
T_stg	Storage Temperature	- 40, + 150
T_j	Junction Temperature	0, +150

Description

Designed for monitors and high performance TVs, the TDA8179FSvertical deflection booster is able to work with a flyback voltagemore than the double of VS.

The TDA8179FS operates with supplies up to 42V, flyback output up to 92V and provides up to 2App output current to drive to yoke.

The TDA8179FS
