Product Details

Description



Features:

.SYNCHRONIZATION CIRCUIT
.OSCILLATOR AND RAMP GENERATOR
.HIGH POWER GAIN AMPLIFIER
.FLYBACK GENERATOR
·VOLTAGE REGULATOR

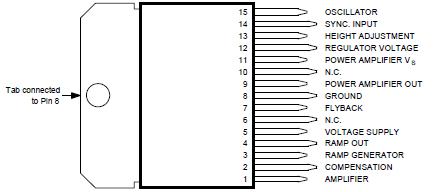

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
V5 Supply Voltage at Pin 2
35
V
V4, V5 Flyback Peak Voltage
60
V
V10 Power Amplifier Input Voltage
+ 10
0.5
V
V
IO Output Peak Current (non repetitive, t = 2 ms)
2
A
IO Output Peak Current at f =50 Hz, t 10 s
2.5
A
IO Output Peak Current at f =50 Hz,t > 10 s
1.5
A
I3 Pin 3 DC Current at V4< V2
100
mA
I3 Pin 3Peak to Peak Flyback Current at f =50 Hz,tfly 1.5 msec
1.8
A
I8 Pin 8 Current
± 20
mA
Ptot Power Dissipation    at Ttab = 90 °C
                                at Tamb = 80 °C
20
1.4
W
W
Tstg, Tj Storage and Junction Temperature
40,+150



Description

The TDA8176 is a monolithic integrated circuit in Multiwatt 15 package. It is intended for use in color TV sets and monitors.
