TDA8174: Multimedia Misc Vertical Deflection

TDA8174 Data Sheet

Get Latest Price

Part Number:: TDA8174
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TDA8000 evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8000T evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8001 evaluate
Features: · Protected I/O line· VCC regulation (5 V ±5%, 100 mA max. with controlled rise and fall...

Product Details

Quick Details

Type :	Vertical Deflection Circuit	Package / Case :	MULTIWATT-11L
Packaging :	Tube

Description

Number of Channels :
Conversion Rate :
Resolution :
Packaging : Tube
Type : Vertical Deflection Circuit
Package / Case : MULTIWATT-11L

Features:

.RAMP GENERATOR
.INDEPENDENTAMPLITUDE ADJUSTEMENT
.BUFFER STAGE
.POWERAMPLIFIER
.FLYBACKGENERATOR
.INTERNAL REFERENCE VOLTAGE
·THERMAL PROTECTION

Pinout

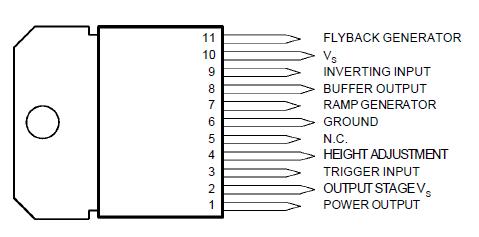

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage	35	V
V₁,V₂	Flyback Peak Voltage	60	V
V₃	Trigger Input Voltage	20	V
V₉	Amplifier Input Voltage	GND, V_S	V
I_O	Output Peak-to-peak Current (non repetitive t = 2ms)	6	A
I_O	Output Peak-to-peak Current t > 10s	4	A
I₁₁	Pin 11 DC Current at V₁ < V₁₀	100	mA
I₁₁	Pin 11 Peak-to-peak Current @ t_fly< 1.5ms	3	A
P_tot	Total Power Dissipation@ T_tab = 60°C	30	W
T_stg	Storage Temperature	40, +150
T_j	Junction Temperature	0, +150
T_amb	Ambient Temperature	0, +70

Description

TDA8174 and TDA8174W are a monolithic integrated circuits.

It is a full performance and very efficient vertical deflection circuit intended for direct drive of a TV picture tube in Color and B & W television as well as in Monitor and Data displays.
